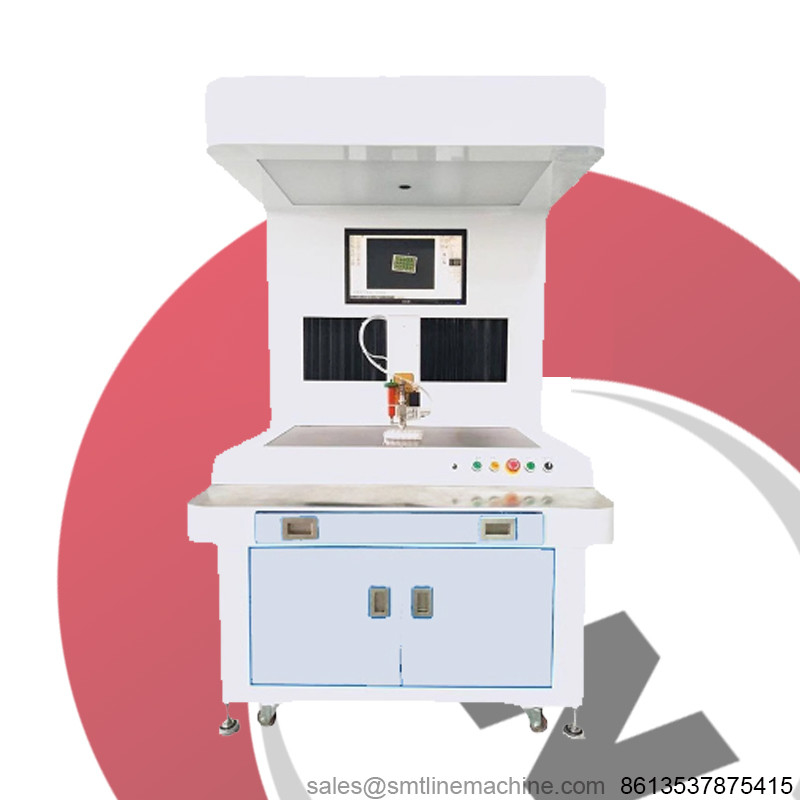

Offline Fully Automatic High-Speed Dispensing Machine: Features
1. High Cost-Effectiveness:
The machine is designed with an integrated frame, providing high strength and stability, which ensures it meets the high-speed operation and precision requirements. It is equipped with international brand components, reducing the occurrence of faults and enhancing operational efficiency.
2. High Flexibility:
The machine can handle various substrate sizes, offering compatibility with multiple dispensing valves and adhesives. This makes it adaptable to producing a wide range of products and manufacturing different processes.
3. High Productivity:
With online production capabilities, it minimizes manual intervention, maximizing equipment usage and efficiency. The machine features precise glue quantity control and visual algorithms, improving dispensing accuracy and overall production yield.
| Specification | Details |
| Model | HNY-DJS-CCD |
| Effective Stroke (X/Y/Z) | 540/330/100 mm |
| Effective Working Area | 400 mm * 300 mm |
| Working Speed | 1000 mm/s |
| Repeatability Accuracy | ±0.02 mm |
| Vision System | CH-V500 |
| Camera Resolution | 5 MP / 10 MP |
| Software | WIN7-compatible professional Chinese software |
| Power | 2 kW |
| Power Supply | 220V / 50 Hz |
| Dimensions (L/R, F/B, U/D) | 1100/1360/1900 mm |
| Weight | 320 kg |
| Drive Method (X/Y/Z) | Servo motor + linear guide + precision ball screw |
Vision Dispensing Machine Features
User-Friendly Windows 7 Interface:
The machine operates with a Windows 7 Chinese interface, which is easy to learn and understand. It can connect seamlessly with upstream and downstream equipment, and has a reserved interface for MES system integration to optimize production flow.
Versatile Dispensing Functions:
The vision dispensing machine supports various dispensing shapes and paths, including points, lines, surfaces, arcs, circles, and irregular curves. It can perform continuous and uninterrupted dispensing with multi-axis linkage, ensuring precision in complex dispensing tasks.
Large Storage Capacity and Advanced Software:
The system is equipped with a large hard drive for extensive storage and includes software features such as area arrays, translation, and rotation calculations, which simplify and enhance the precision of dispensing operations.
Customizable Parameters for Dispensing:
Users can easily adjust parameters such as dispense volume, dispensing speed, dispense time, and pause time. The machine ensures consistent, smooth dispensing with stable output for smooth lines and perfect circles.
Auto CAD File Import Feature:
To simplify programming, the machine supports importing AutoCAD files, enabling efficient translation of designs into dispensing patterns and reducing manual programming time.
Flexible Glue Supply Options:
The machine is compatible with a range of glue supply systems, including 10/30/50/200ML syringes, and 300ML/2600ML/5-gallon pressure pots for dispensing. This flexibility allows users to select the most suitable system for their production needs.
Wide Application for Various Adhesives:
The vision dispensing machine is capable of non-contact dispensing for materials like SMT red glue, UV glue, hot melt glue, silicone, and epoxy resin. Additionally, it supports contact dispensing for AB structural adhesives, fast-drying glues, yellow glue, and other specialty adhesives.
