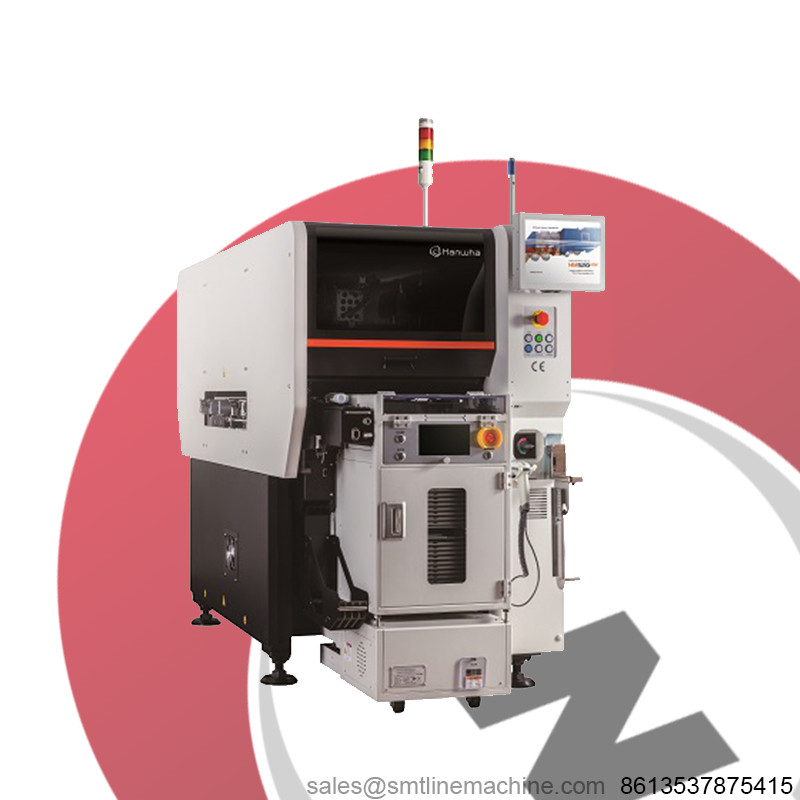

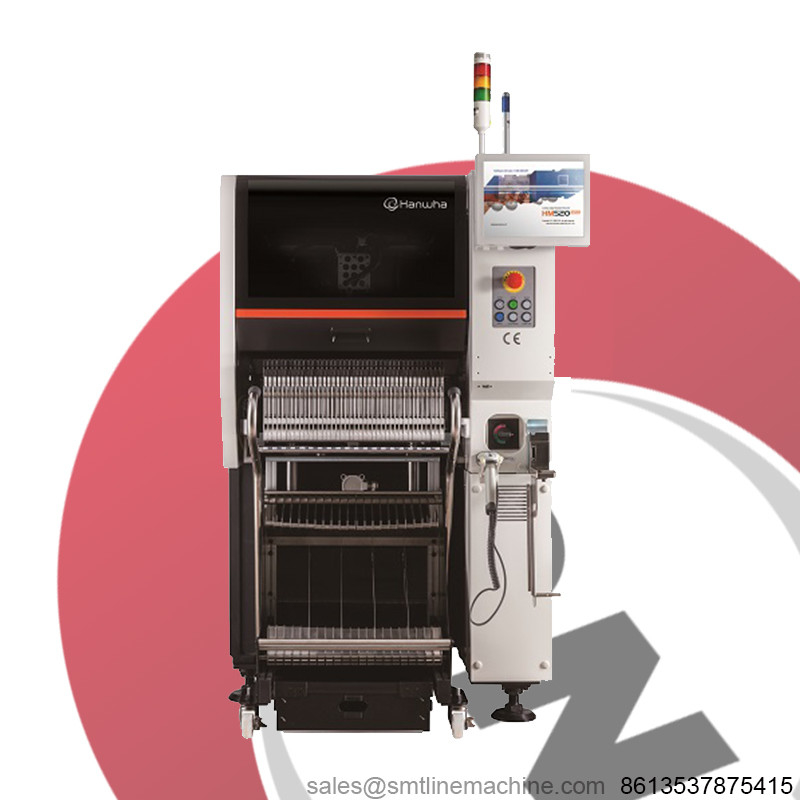

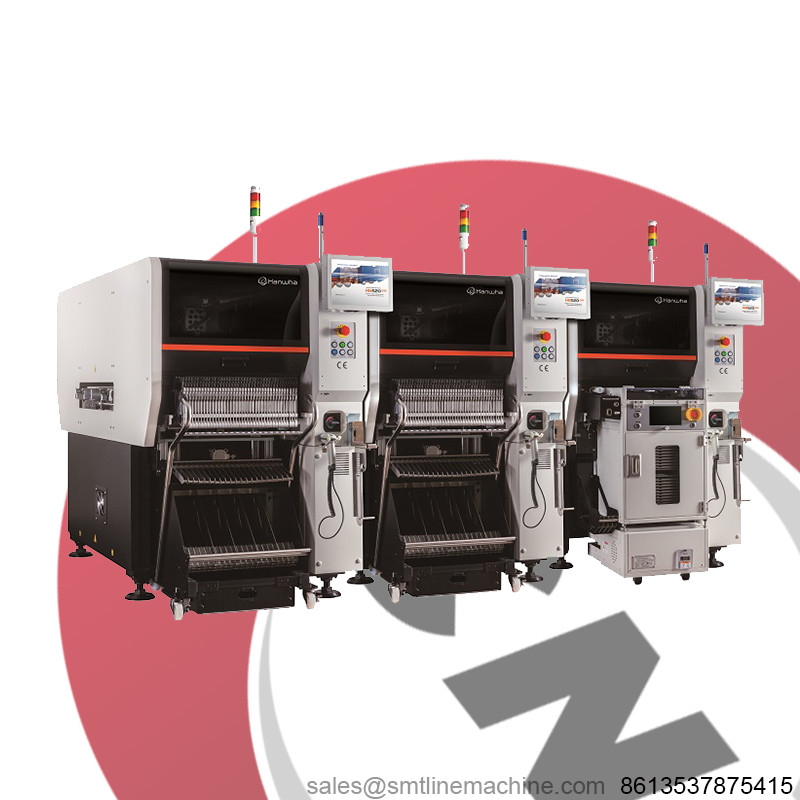

The HM520 NEO is a high-performance pick-and-place machine that combines speed, precision, and reliability, making it one of the best in its class.
With an impressive productivity rate of up to 85,000 CPH (Components Per Hour), it stands out as one of the fastest machines in its category. This level of speed significantly enhances the overall efficiency of the SMT (Surface Mount Technology) production line, ensuring rapid turnaround times for various types of electronic assemblies.
What sets the HM520 NEO apart from other machines is its optimization for high-quality production. The machine boasts high accuracy—with ±25 μm precision for chips—ensuring that every component is placed with meticulous care.
Whether it’s the smallest components like 0201 or larger ones up to □ 6 mm, the machine can handle a wide range of component sizes with impeccable accuracy. This combination of speed and precision allows for the seamless production of high-quality electronic assemblies, meeting the stringent requirements of the electronics industry.
In addition to its technical specifications, the HM520 NEO is equipped with cutting-edge Smart Factory Software Solutions, enabling unmanned, non-stop, and zero-defect production.
The integration of Smart Factory Software ensures that the machine can operate autonomously, reducing the need for manual intervention while continuously monitoring and correcting placement errors.
This automated operation helps prevent defects and ensures consistent, high-quality output. The ability to run continuously without breaks also improves overall factory efficiency, optimizing production throughput.
The machine’s reliability is further enhanced by features like the Auto Nozzle Change (ANC) system, nozzle auto-rearrangement, and side-view cameras that help prevent non-insertion and detect any potential issues before they occur.
With these capabilities, the HM520 NEO is designed for zero-defect production, minimizing downtime and maintaining optimal performance throughout the production cycle.
Overall, the HM520 NEO is a cutting-edge solution for manufacturers looking to achieve maximum productivity, precision, and efficiency in their SMT production lines, making it a top choice for high-volume, high-quality electronic assembly.
compare the specifications and features of HM520 NEO HS and HM520 NEO MF:
| Specification | HM520 NEO HS | HM520 NEO MF |
|---|---|---|
| Configuration | 20 Spindle * 2 Gantry | 6 Spindle * 2 Gantry |
| Speed | 85,000 CPH | 60,000 CPH |
| Accuracy | ±25 μm @ Cpk ≥ 1.0 (Chip) | ±40 μm @ Cpk ≥ 1.0 (Chip) / ±30 μm @ Cpk ≥ 1.0 (IC) |
| Component Range | 0201 ~ □ 6 mm | 0402 ~ □ 55 mm |
| Dimension (L x D x H) | 920 x 2,370 x 1,930 mm | 920 x 2,370 x 1,930 mm |
| Features | ||
| High Speed | 85,000 CPH | 60,000 CPH |
| High Reliability | Side View Camera prevents non-insertion; checks nozzle & component posture | Height Sensor automatically corrects placement height |
| High Productivity | New HM 8mm feeder reduces feeding time by 24% | Multi-function: 6 Spindle Head (Piano Type) for a wide range of components |
| Easy Operation & Auto Recovery | ANC (Auto Nozzle Change) & Nozzle auto rearrangement with fiducial camera | ANC (Auto Nozzle Change) & Nozzle auto rearrangement with fiducial camera |
| Flexibility | - | Can place components from 0402 to 55mm, with max height of 15mm |
