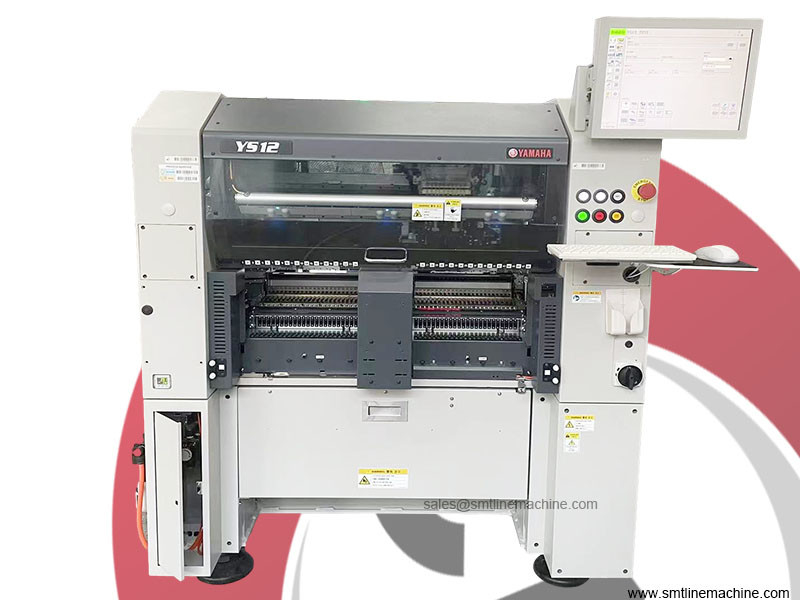

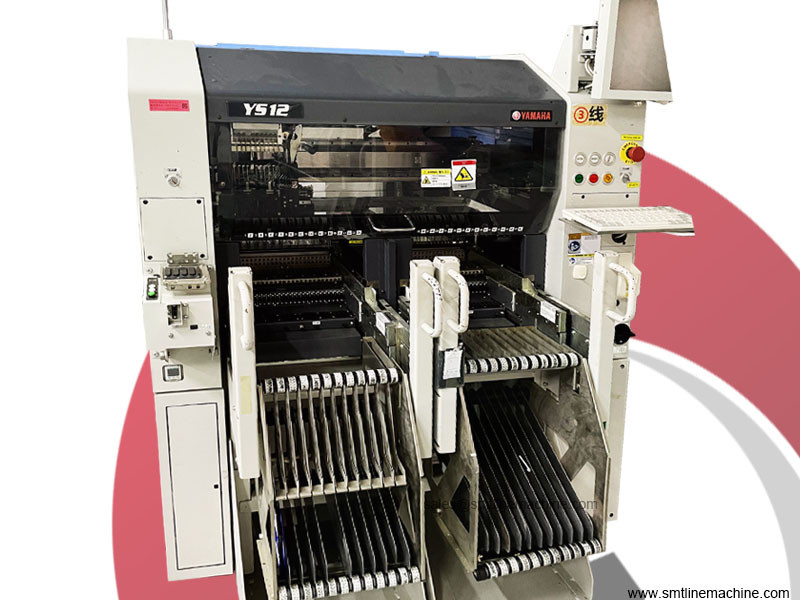

220V / 110V SMT YAMAHA YS12 Pcb Pick And Place Machine With 15mm Mountable Height

220V / 110V SMT YAMAHA YS12 Pcb Pick And Place Machine With 15mm Mountable Height

SMT USED YAMAHA YS12 YS12F PICK AND PLACE MACHINE good Working condition From CNSMT

Our company based in shenzhen of China,We have a lot of used and new SMT YAMAHA PICK AND PLACE MACHINES IN STOCK

Type: YS 12(model: KKJ-000)

Object substrate: L50 X W50 mm-L510 X W460 mm

Appliance precision: Absolute accuracy(M + 3 Sigma) ± 0.05 mmm/CIP

Appliance efficiency: 20,000 CPH(our best conditions)

Component supply: tape, tray supply

Type of components: belt packing: 106(max. / converted to 8mm tape)

Disk packaging: 15(max. / converted to JEDEC tray)

Object components: 0402 ~ 45 x 100 mm, bulb electrode element: 32 mm or more, special suction assembly required

Mountable height: 15mm

Power specification: three-phase AC 200/208/220 / 240/380 / 400/416 V + 10 %

Gas supply: above 0.45 MPa, clean and dry

Shape size: L1,254 X W1755 X H1,475 mm(assembled with ATS 15) (other than protrusions)

Body mass: approximately 1,370 kg(assembled at ATS 15).

36,000 CPH(0.05 sechep) excellent mounting capacity newly developed two-stage transport station
It's the world's largest area productivity
L700 X W460mm for Super large substrate
:: Matching the Yamaha dual transport orbital system
120 Maximum supply
• 4002 ~ 32 x 32mm corresponding element
YS24
Object substrate L50 X W50 mm-L700 X W460 mm
Appliance capacity 72,000 CPH(0.05 SEC / CHIP: Best for the Company)
Pasture accuracy ± 0.05 mm(M +3 Sigma), ± 0.03 mm(3 Sigma)
Object Component 0402-M 32 mm MAX(Height below 6.5 mm)
120 types of components(max. / converted to 8mm tape)
Power specification three-phase AC 200/208/220 / 240/380 / 400/416 V ± 10 %
Clean and dry state above 0.45 MPa
Shape size L1,254 X W1,687 X H1,445 mm(excluding protrusions)
Body mass approximately 1,700 kg

What Can We do for you?

1. SMT FULL LINE SOLUTION

2. SMT PRINTER,PICK AND PLACE MACHINE,REFLOW OVEN,CONVEYOR,AOI,SPI,LOADER AND UNLOADER

3. SMT PERIPHERY EQUIPMENT Manufacuture

4. Manufacuture of SMT FEEDERS AND NOZZLES

5. WE HAVE PROFESSIONAL ENGINEER TEAM

6.PCB ASSEMBLY SERVICE
